QTY5-15

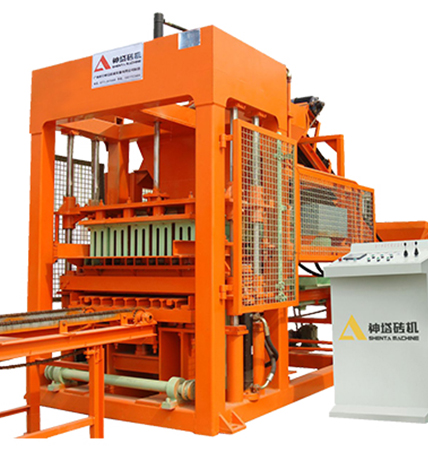

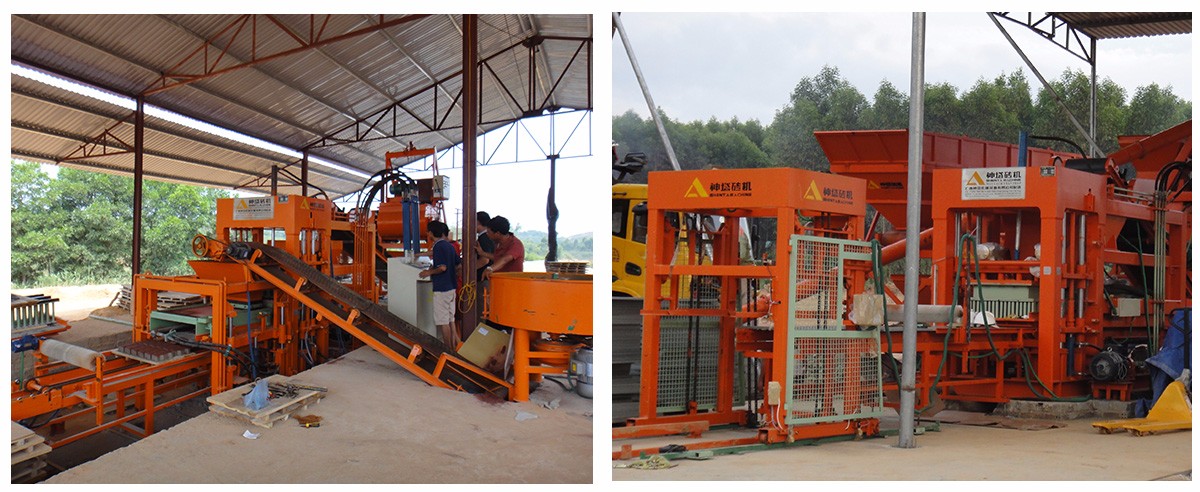

The Shenta machine adopts Taiwan import PLC controller, the brick produce is full automatic. The main machine utilized the molding method of pressure and high frequency vibration to make the more airtight and solid block, the hydraulic system adopts Taiwan/Japan high quality components; Full mechanical transmission with features of compact structure and reasonable arrangement, the perfomance is more stable and malfunction rate is more lower, as well as the operation and maintenance is more easy.

產(chǎn)品咨詢

客服熱線：15077123456

1) Control system: Adopt intelligent programmable logic controller (PLC) and high performance touch screen. Realize the man-machine conversation and fully automatic intelligent operation.

2) High efficient vibration system: Adopt intelligent control technique in the frequency conversion vibration system, distribute materials

in low frequency and form the bricks in high frequency. Moreover, with the synchronous vertical vibration technology, the brick forming

speed becomes faster and the bricks are more compacted.

3) Transmission system: Adopt fully hydraulic transmission, four pillars oriented and synchronous mechanism. Machine operation is stable,

precise and less malfunctions.

4) Feeding system: Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.

5) Machinery Manufacturing: Made of high strength steels according to the national standard. Special welding techniques and advanced

mechanical working processes bring high precision, durable and a long service life.

制磚機,神塔機械,神塔磚機,磚機,廣西磚機,神塔

Operatiom Cycle

15-25 s

Pallet Size

1080x550x30 mm

Block Height

60-200 mm

Power

43 kw

Net Weight

7 t

Dimension

4100x2000x3000 mm

制磚機,神塔機械,神塔磚機,磚機,廣西磚機,神塔

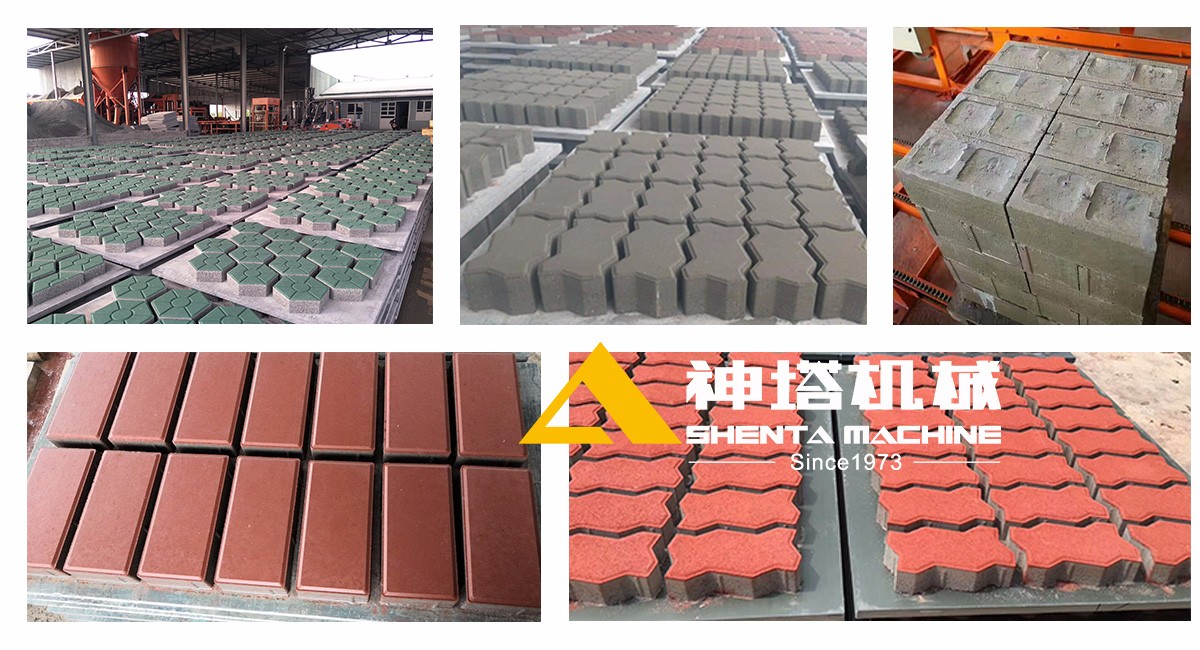

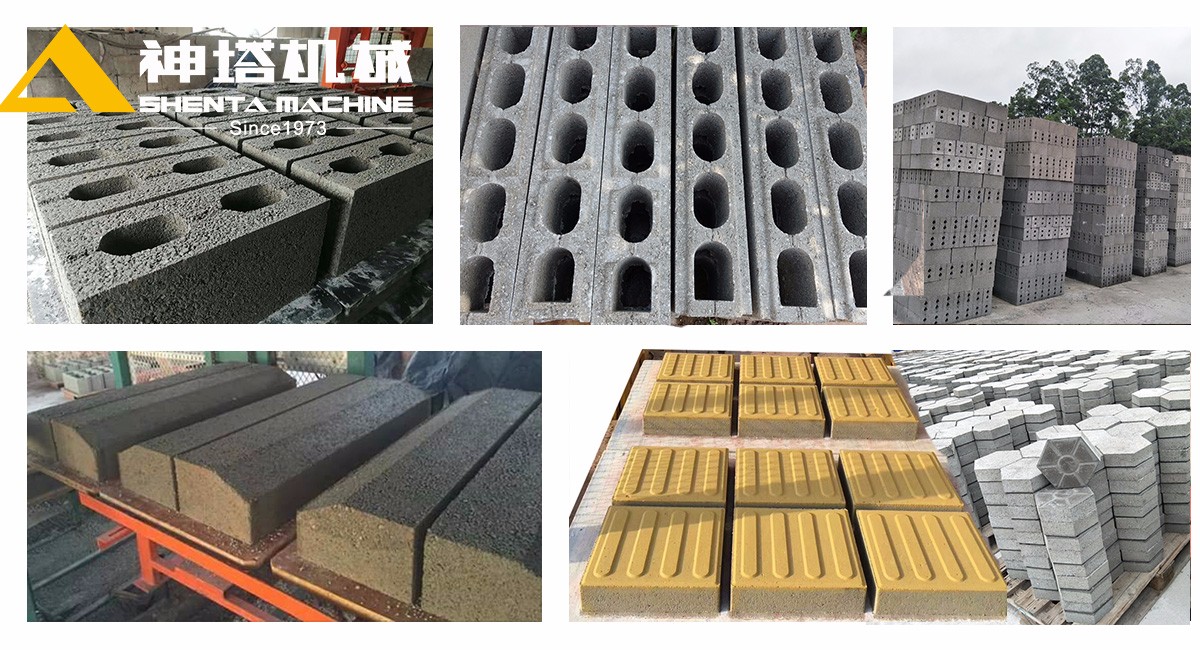

Block Type	Size	Pcs./Pallet	Pcs./Hour	Pcs./8hours	Block Picture
Hollow Block	390x190x190	5	1200	9600
Porous Block	240x115x90	16	3840	30720
Pavers Block	200x100x60	18	4320	34560
Solid Block	240x53x115	32	7680	61400

制磚機,神塔機械,神塔磚機,磚機,廣西磚機,神塔

QTY5-15
